We offer professional small scale oil pressing line for sunflower seed oil from 1tpd to 20tpd. The sunflower oil pressing plant we designed is fully adopted mechanical driven, which connects each single machine together to extract oil with higher oil yield and at the same time, change the single machines by manual into the semi continuous production line to liberate the workforce. It is really an ideal investing item with little investment, high production efficiency and high profits!

Sunflower Seeds Oil Introduction

The oil content of sunflower seed is average 30%-45% mostly in sunflower seed kernel. The sunflower is a distinctive, flowering plant, the seeds of which contain a valuable edible oil that contains more Vitamin E than any other vegetable oil. Most sunflower oil is used in food products. The seeds of confection varieties of sunflowers are also sold for human consumption and birdseed.

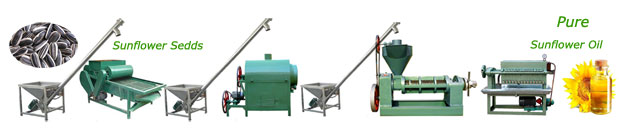

Flow Chart of the Sunflower Oil Pressing Line

Elevating – Seed Cleaning – Elevating – Cooking – Elevating – Pressing – Filtering
Or you can choose an integrated oil press machine to press and filtrate oil at one time.

Main Equipment of the Sunflower Oil Pressing Line

Cleaning Sieve
	Model: 6SX-1200 Capacity: 3~5T/H Power: 1.5KW Net Weight: 300KG Outside Size:2350*1350*1300MM

Cooker
	Model: 6GT-700 Capacity:150~200KG/h Power: 1.5KW Net Weight: 160KG Outside Size:1525*1220*1490MM

Oil Filter Press
	Model: 6LB-250 Capacity: 200kg/hr Power: 1.1kw Weight: 470kg Working Pressure: 0.3-0.4MPa Dimension: 1300*750*700mm

Screw Elevator
	Model: STS-5 Capacity: 1~2T/H Power: 1.5KW Net Weight: 200KGS Outside Size:2880*1080*575mm

Screw Oil Press
	Model: YZS-100 Capacity: 4-5MT/24H Power: 7.5KW & 15HP Outside Size: 1910*610*765mm Weight: 550kg

Integrated Oil Press
	Model: YZS-100A Capacity: 5T/24H Power: 7.5+1.1KW Outside Size: 2270x750x1820mm                          1220*590*600mm Weight: 780KG

Features of the Sunflower Oil Pressing Line

★  Easier to operate, easier to install and commissioning.
★  Need small investment, fewer land space, but with the complete function of the production.
★  Wide application that can make many other kinds of vegetable seeds and nuts, such as rapeseeds, cotton seeds, sunflower seeds, corn germ, palm kernel, sesame seeds and so on.
★ Need fewer labor than the single machines, only 2~3 persons can run the whole line
★  The semi-continuous can avoid the unstable material feeding caused by manual and can make the worker safety more under the higher temperature working situation.
