Small Oil Pressing Line

Home > PRODUCTS > Small Oil Pressing Line >

Palm Oil Pressing Line

The small production line is for getting the palm oil from palm kernels. The production capacity changes according to the oil press machines you choose. This small palm oil pressing line is a semi-continuous oil production unit that easily connects each piece of press machinery together to create higher efficiency and at the same time, make the production more safety. This small automatic oil pressing unit requires very little investment and land space, but maintains complete functionality in production. It is your ideal choice for starting your palm oil making business!

JH is a well-reputed company in the field of oil processing which specialized in oil project design, facility installation and debugging. We can provide customized oil pressing plant as well as oil refinery plant for a great number of vegetable seeds, such as groundnuts, canola seed, coconut, cottonseed, sunflower seed etc. We will always offer the most suitable solution according to your raw materials and production scale. The small oil pressing lines we offered are premium quality guaranteed at the most competitive prices. Choose us today and we will never let you down!

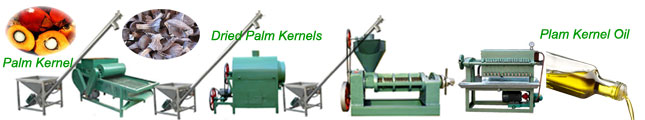

Palm Kernel Oil Pressing Flowchart

Palm Kernel Oil Pressing Line Main Machinery

Note: The daily production of the line depends on the screw oil press machine you use. The integrated oil press includes vacuum filter in it that can filter crude oil itself.

Cleaning Sieve
	Model: 6SX-1200 Capacity: 3~5T/H Power: 1.5KW Net Weight: 300KG Outside Size:235013501300MM

Cooker
	Model: 6GT-700 Capacity:150~200KG/h Power: 1.5KW Net Weight: 160KG Outside Size:152512201490MM

Oil Filter Press
	Model: 6LB-250 Capacity: 200kg/hr Power: 1.1kw Weight: 470kg Working Pressure: 0.3-0.4MPa Dimension: 1300750700mm

Screw Elevator
	Model: STS-5 Capacity: 1~2T/H Power: 1.5KW Net Weight: 200KGS Outside Size:28801080575mm

Screw Oil Press
	Model: YZS-100 Capacity: 4-5MT/24H Power: 7.5KW & 15HP Outside Size: 1910610765mm Weight: 550kg

Integrated Oil Press
	Model: YZS-100A Capacity: 5T/24H Power: 7.5+1.1KW Outside Size: 2270x750x1820mm 1220590600mm Weight: 780KG

Advantages of Our Palm Kernel Oil Pressing Line

Easier to operate,install and commissioning;

small investment,fewer land space, fewer labor but with the complete functio of the production.

wide application for various seeds and nuts;

The semi-continuous can avoid the unstable material feeding caused by manual and can make

the worker safety more under the higher temperature working situation.

Palm Oil & Palm Kernel Oil

Palm kernel oil is an edible plant oil derived from the kernel of the oil palm. Palm kernel oil, which is semi-solid at room temperature, is more saturated than palm oil and comparable to coconut oil. It is commonly used in commercial cooking because of its relatively low cost, and because it remains stable at high cooking temperatures and can be stored longer than other vegetable oils.

Palm oil is naturally reddish in color because of a high beta-carotene content. It is not to be confused with palm kernel oil derived from the kernel of the same fruit. The use of palm oil in food products has attracted the concern of environmental activist groups.
