Small Oil Pressing Line
Soybean Oil Pressing Line
With a wealth of experience in the field of oil production, JH is good at providing customized oil press lines for different kinds of vegetable seeds. Wether you are going to install only a 1 tpd oil pressing line or larger capacity, JH can always satisfy your needs! We connect each single oil processing maachinery together with scientific allocation to help improve working efficiency and safty. Little investment, high production efficiency and high profits!
Soybean Oil and Its Benefit
Soybean oil is a vegetable oil extracted from the seeds of the soybean. Soybean oil is an edible oil with a light and clean flavor that is commonly used for cooking. There are numerous benefits of using soybean oil. Soybean oil can be considered a healthy oil, provided that it's not been hydrogenated and provided that it's certified organic. The oil is 60% polyunsaturated fat and 24% monounsaturated fat, according to the National Soybean Research Laboratory, making it a heart-healthy oil.
Soybean Oil Pressing Main Process
The production of soybean oil involves cracking soybean seeds, heating them, then extracting the oil through physical or chemical means.

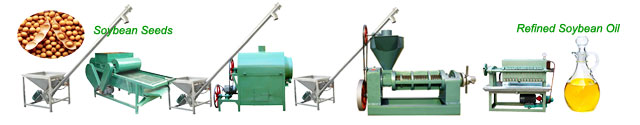

Main Equipment of the Soybean Oil Pressing Line
cleaning sieve, cooker, filter press, screw elevator, oil press
| Cleaning Sieve | |
|---|---|
 |
Model: 6SX-1200 Capacity: 3~5T/H Power: 1.5KW Net Weight: 300KG Outside Size:2350*1350*1300MM |
| Cooker | |
|---|---|
 |
Model: 6GT-700 Capacity:150~200KG/h Power: 1.5KW Net Weight: 160KG Outside Size:1525*1220*1490MM |
| Oil Filter Press | |
|---|---|
 |
Model: 6LB-250 Capacity: 200kg/hr Power: 1.1kw Weight: 470kg Working Pressure: 0.3-0.4MPa Dimension: 1300*750*700mm |
| Screw Elevator | |
|---|---|
 |
Model: STS-5 Capacity: 1~2T/H Power: 1.5KW Net Weight: 200KGS Outside Size:2880*1080*575mm |
| Screw Oil Press | |
|---|---|
 |
Model: YZS-100 Capacity: 4-5MT/24H Power: 7.5KW & 15HP Outside Size: 1910*610*765mm Weight: 550kg |
| Integrated Oil Press | |
|---|---|
 |
Model: YZS-100A Capacity: 5T/24H Power: 7.5+1.1KW Outside Size: 2270x750x1820mm 1220*590*600mm Weight: 780KG |
Advantages of Soybean Oil Pressing Line
Easier to operate, install and commissioning.
Small investment, fewer land space, fewer labor but with the complete function of the production.
Wide application for various seeds and nuts
The semi-continuous can avoid the unstable material feeding caused by manual and can make the worker safety more under the higher temperature working situation.
Soybean Oil and Its Benefit
Soybean oil is a vegetable oil extracted from the seeds of the soybean. Soybean oil is an edible oil with a light and clean flavor that is commonly used for cooking. There are numerous benefits of using soybean oil. Soybean oil can be considered a healthy oil, provided that it's not been hydrogenated and provided that it's certified organic. The oil is 60% polyunsaturated fat and 24% monounsaturated fat, according to the National Soybean Research Laboratory, making it a heart-healthy oil.Product list
